GRE over IPsecのコンフィグ
IPsecはマルチキャストには対応していません。拠点1と拠点2でマルチキャスト通信をする場合は、元パケットをGREでカプセル化した上でIPsecのESPパケット化することで通信可能になります。ここではGRE over IPsecのコンフィグを記載します。
構成図
コンフィグについて
拠点1と拠点2でOSPFでダイナミックルーティングできることで、マルチキャスト通信ができていることを確認します。
RT-1コンフィグ
RT-2コンフィグ
※黄色文字はPPPoE+NAT+ACLのコンフィグからの変更箇所です。
RT-1#show run version 15.3 no service pad service tcp-keepalives-in service tcp-keepalives-out service timestamps debug datetime msec localtime service timestamps log datetime msec localtime no service password-encryption service sequence-numbers no service dhcp ! hostname RT-1 ! boot-start-marker boot-end-marker ! aqm-register-fnf ! logging buffered 512000 enable secret 5 $1$UZ.d$263eCd7jDVJHAqwgfcFNL0 ! no aaa new-model clock timezone JST 9 0 ! ! ! no ip bootp server no ip domain lookup ip domain name free-ne.com ip inspect name CBAC tcp ip inspect name CBAC udp ip inspect name CBAC icmp ip cef no ipv6 cef ! ! ! multilink bundle-name authenticated ! ! ! no spanning-tree vlan 1 username admin secret 5 $1$ztjJ$yET4V3rcbtkvdA9yjTJin. ! ! ! ip ssh version 2 ! ! crypto isakmp policy 110 encr aes hash sha256 authentication pre-share group 2 lifetime 1800 crypto isakmp key PS-key address 22.22.22.22 crypto isakmp keepalive 30 periodic ! ! crypto ipsec transform-set TS-name esp-aes esp-sha256-hmac mode transport ! ! ! crypto map MAP-name 160 ipsec-isakmp set peer 22.22.22.22 set security-association lifetime seconds 1200 set transform-set TS-name set pfs group14 match address GRE ! ! ! interface Tunnel0 ip address 10.3.1.11 255.255.255.0 ip tcp adjust-mss 1350 ip ospf 1 area 0 tunnel source Dialer1 tunnel destination 22.22.22.22 ! interface BRI0 no ip address encapsulation hdlc shutdown isdn termination multidrop ! interface FastEthernet0 no ip address shutdown duplex auto speed auto ! interface GigabitEthernet0 no ip address ! interface GigabitEthernet1 no ip address ! interface GigabitEthernet2 no ip address ! interface GigabitEthernet3 no ip address ! interface GigabitEthernet4 no ip address ! interface GigabitEthernet5 no ip address ! interface GigabitEthernet6 no ip address ! interface GigabitEthernet7 no ip address ! interface GigabitEthernet8 no ip address duplex auto speed auto pppoe enable group global pppoe-client dial-pool-number 1 ! interface Vlan1 ip address 10.1.1.11 255.255.255.0 ip nat inside ip virtual-reassembly in ip tcp adjust-mss 1452 ! interface Async3 no ip address encapsulation slip ! interface Dialer1 ip address negotiated ip access-group Internet-ACL in ip mtu 1492 ip nat outside ip inspect CBAC out ip virtual-reassembly in encapsulation ppp dialer pool 1 dialer-group 10 ppp authentication chap callin ppp chap hostname user1 ppp chap password 0 cisco no cdp enable crypto map MAP-name ! router ospf 1 network 10.1.1.0 0.0.0.255 area 0 ! ip forward-protocol nd no ip http server no ip http secure-server ! ! ip nat inside source list Internet-PAT interface Dialer1 overload ! ip route 0.0.0.0 0.0.0.0 Dialer1 ! ip access-list standard Internet-PAT permit 10.1.1.0 0.0.0.255 ip access-list standard SSH-ACL permit 10.1.1.0 0.0.0.255 ! ! ip access-list extended GRE permit gre host 11.11.11.11 host 22.22.22.22 ip access-list extended Internet-ACL permit udp host 9.9.9.1 eq ntp host 11.11.11.11 eq ntp permit icmp any host 11.11.11.11 permit udp host 22.22.22.22 eq isakmp host 11.11.11.11 eq isakmp permit esp host 22.22.22.22 host 11.11.11.11 ! ! dialer-list 10 protocol ip permit no cdp run ! ! control-plane ! ! ! mgcp behavior rsip-range tgcp-only mgcp behavior comedia-role none mgcp behavior comedia-check-media-src disable mgcp behavior comedia-sdp-force disable ! mgcp profile default ! ! ! line con 0 exec-timeout 60 0 logging synchronous no modem enable line aux 0 line 3 modem InOut speed 115200 flowcontrol hardware line vty 0 4 access-class SSH-ACL in exec-timeout 60 0 logging synchronous login local transport input ssh ! scheduler allocate 20000 1000 ntp server 9.9.9.1 ! end
RT-2#show run version 15.3 no service pad service tcp-keepalives-in service tcp-keepalives-out service timestamps debug datetime msec localtime service timestamps log datetime msec localtime no service password-encryption service sequence-numbers no service dhcp ! hostname RT-2 ! boot-start-marker boot-end-marker ! aqm-register-fnf ! logging buffered 512000 enable secret 5 $1$RBil$/zAAQLKQrekcrMgQIHCwW1 ! no aaa new-model clock timezone JST 9 0 ! ! ! no ip bootp server no ip domain lookup ip domain name free-ne.com ip inspect name CBAC tcp ip inspect name CBAC udp ip inspect name CBAC icmp ip cef no ipv6 cef ! ! ! multilink bundle-name authenticated ! ! ! no spanning-tree vlan 1 username admin secret 5 $1$m9Qc$PRKkep3gWJR3N4D9OOnBO. ! ! ! ip ssh version 2 ! ! crypto isakmp policy 110 encr aes hash sha256 authentication pre-share group 2 lifetime 1800 crypto isakmp key PS-key address 11.11.11.11 crypto isakmp keepalive 30 periodic ! ! crypto ipsec transform-set TS-name esp-aes esp-sha256-hmac mode transport ! ! ! crypto map MAP-name 160 ipsec-isakmp set peer 11.11.11.11 set security-association lifetime seconds 1200 set transform-set TS-name set pfs group14 match address GRE ! ! ! interface Tunnel0 ip address 10.3.1.22 255.255.255.0 ip tcp adjust-mss 1350 ip ospf 1 area 0 tunnel source Dialer1 tunnel destination 11.11.11.11 ! interface BRI0 no ip address encapsulation hdlc shutdown isdn termination multidrop ! interface FastEthernet0 no ip address shutdown duplex auto speed auto ! interface GigabitEthernet0 no ip address ! interface GigabitEthernet1 no ip address ! interface GigabitEthernet2 no ip address ! interface GigabitEthernet3 no ip address ! interface GigabitEthernet4 no ip address ! interface GigabitEthernet5 no ip address ! interface GigabitEthernet6 no ip address ! interface GigabitEthernet7 no ip address ! interface GigabitEthernet8 no ip address duplex auto speed auto pppoe enable group global pppoe-client dial-pool-number 1 ! interface Vlan1 ip address 10.2.1.22 255.255.255.0 ip nat inside ip virtual-reassembly in ip tcp adjust-mss 1452 ! interface Async3 no ip address encapsulation slip ! interface Dialer1 ip address negotiated ip access-group Internet-ACL in ip mtu 1492 ip nat outside ip inspect CBAC out ip virtual-reassembly in encapsulation ppp dialer pool 1 dialer-group 10 ppp authentication chap callin ppp chap hostname user1 ppp chap password 0 cisco no cdp enable crypto map MAP-name ! router ospf 1 network 10.2.1.0 0.0.0.255 area 0 ! ip forward-protocol nd no ip http server no ip http secure-server ! ! ip nat inside source list Internet-PAT interface Dialer1 overload ip nat inside source static tcp 10.2.1.2 80 22.22.22.22 80 extendable ip route 0.0.0.0 0.0.0.0 Dialer1 ! ip access-list standard Internet-PAT permit 10.2.1.0 0.0.0.255 ip access-list standard SSH-ACL permit 10.2.1.0 0.0.0.255 permit 10.1.1.0 0.0.0.255 ! ip access-list extended GRE permit gre host 22.22.22.22 host 11.11.11.11 ip access-list extended Internet-ACL permit udp host 9.9.9.1 eq ntp host 22.22.22.22 eq ntp permit icmp any host 22.22.22.22 permit tcp any host 22.22.22.22 eq www permit udp host 11.11.11.11 eq isakmp host 22.22.22.22 eq isakmp permit esp host 11.11.11.11 host 22.22.22.22 ! dialer-list 10 protocol ip permit no cdp run ! ! control-plane ! ! ! mgcp behavior rsip-range tgcp-only mgcp behavior comedia-role none mgcp behavior comedia-check-media-src disable mgcp behavior comedia-sdp-force disable ! mgcp profile default ! ! ! line con 0 exec-timeout 60 0 logging synchronous no modem enable line aux 0 line 3 modem InOut speed 115200 flowcontrol hardware line vty 0 4 access-class SSH-ACL in exec-timeout 60 0 logging synchronous login local transport input ssh ! scheduler allocate 20000 1000 ntp server 9.9.9.1 ! end
IPsecの状態確認
RT-2#show crypto engine connections active
Crypto Engine Connections
ID Type Algorithm Encrypt Decrypt LastSeqN IP-Address
3 IPsec AES+SHA256 0 36 36 22.22.22.22
4 IPsec AES+SHA256 52 0 0 22.22.22.22
2001 IKE SHA256+AES 0 0 0 22.22.22.22
RT-2#
RT-2#show crypto isakmp sa
IPv4 Crypto ISAKMP SA
dst src state conn-id status
22.22.22.22 11.11.11.11 QM_IDLE 2001 ACTIVE
IPv6 Crypto ISAKMP SA
RT-2#
RT-2#show crypto ipsec sa
interface: Dialer1
Crypto map tag: MAP-name, local addr 22.22.22.22
protected vrf: (none)
local ident (addr/mask/prot/port): (22.22.22.22/255.255.255.255/47/0)
remote ident (addr/mask/prot/port): (11.11.11.11/255.255.255.255/47/0)
current_peer 11.11.11.11 port 500
PERMIT, flags={origin_is_acl,}
#pkts encaps: 398, #pkts encrypt: 398, #pkts digest: 398
#pkts decaps: 382, #pkts decrypt: 382, #pkts verify: 382
#pkts compressed: 0, #pkts decompressed: 0
#pkts not compressed: 0, #pkts compr. failed: 0
#pkts not decompressed: 0, #pkts decompress failed: 0
#send errors 0, #recv errors 0
local crypto endpt.: 22.22.22.22, remote crypto endpt.: 11.11.11.11
plaintext mtu 1442, path mtu 1492, ip mtu 1492, ip mtu idb Dialer1
current outbound spi: 0x38A478E(59393934)
PFS (Y/N): Y, DH group: group14
inbound esp sas:
spi: 0xBF68324D(3211276877)
transform: esp-aes esp-sha256-hmac ,
in use settings ={Transport, }
conn id: 3, flow_id: Onboard VPN:3, sibling_flags 80000000, crypto map: MAP-name
sa timing: remaining key lifetime (k/sec): (4266414/1126)
IV size: 16 bytes
replay detection support: Y
Status: ACTIVE(ACTIVE)
inbound ah sas:
inbound pcp sas:
outbound esp sas:
spi: 0x38A478E(59393934)
transform: esp-aes esp-sha256-hmac ,
in use settings ={Transport, }
conn id: 4, flow_id: Onboard VPN:4, sibling_flags 80000000, crypto map: MAP-name
sa timing: remaining key lifetime (k/sec): (4266405/1126)
IV size: 16 bytes
replay detection support: Y
Status: ACTIVE(ACTIVE)
outbound ah sas:
outbound pcp sas:
RT-2#
OSPFの動作確認
RT-2#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
a - application route
+ - replicated route, % - next hop override
Gateway of last resort is 0.0.0.0 to network 0.0.0.0
S* 0.0.0.0/0 is directly connected, Dialer1
2.0.0.0/32 is subnetted, 1 subnets
C 2.2.2.2 is directly connected, Dialer1
10.0.0.0/8 is variably subnetted, 5 subnets, 2 masks
O 10.1.1.0/24 [110/1001] via 10.3.1.11, 00:18:16, Tunnel0
C 10.2.1.0/24 is directly connected, Vlan1
L 10.2.1.22/32 is directly connected, Vlan1
C 10.3.1.0/24 is directly connected, Tunnel0
L 10.3.1.22/32 is directly connected, Tunnel0
22.0.0.0/32 is subnetted, 1 subnets
C 22.22.22.22 is directly connected, Dialer1
RT-2#

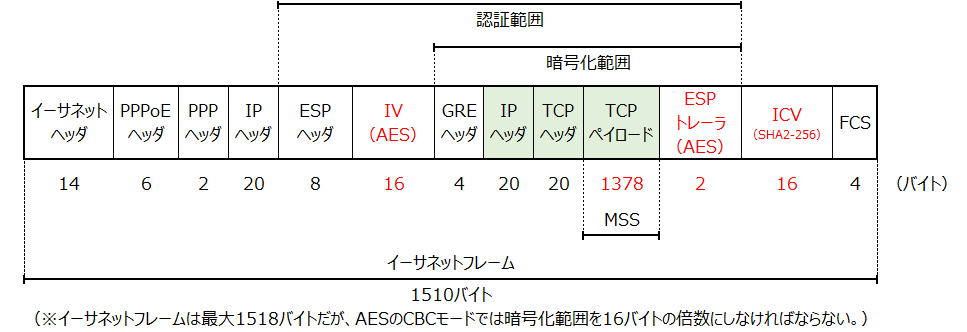

MSS
MSSは余裕を持たせた値にしています。
ちなみに、この環境でのMSSの最大値は以下です。
ヘッダについてはMTU/MSS確認用フレームフォーマット図に記載しています。
